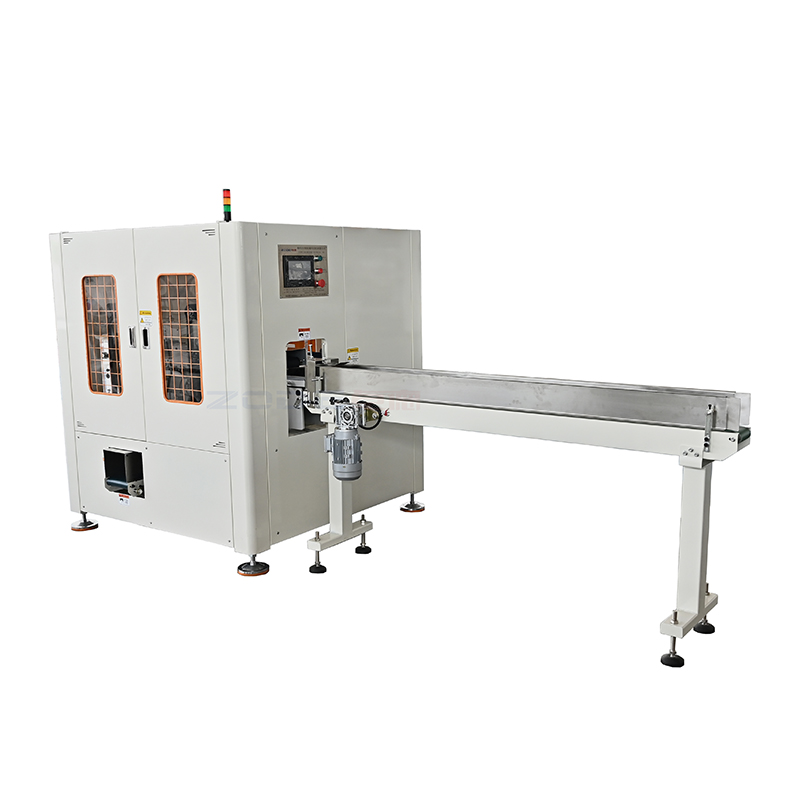

ZD-300S Automatic facial tissue log saw cutting machine

ZD-300S Automatic facial tissue log saw cutting machine

  • category:Facial tissue machinery
  • Views:Times
  • Release date:2023-08-18 09:32:15
  • product description
  • Performance characteristics
  • technical parameter

1. Apply to automatically cut off facial tissue, hand towel (paper core needed to customized).

2. It adopts PLC HMI operation system, can be flexibly changed the time of sharpening, cutting speed, cutting length.

3. With safety protection designed, it is safe reliable operation.

4. Using the inverter speed control servo tracking control system, combined with the light, electricity gas, the cutting length is accurate the finished product is neat.


Name

Technical Parameters

Model

ZD-300S

Cutting specifications

L=50-300mm*W=80-120mm *H=30-130mm

Speed

20-300 cut/min

Outer diameter of blade

610x3.8(mm)

Control system

PLC program control, servo drive, touch screen operation

Feeding method

Servo drive, synchronous belt synchronous positioning transmission

Cutting method

360°rotation

Cutting accuracy

cutting tolerance <1mm

Knife sharpening system

automatic knife sharpening, setting parameters on touch screen

Power supply

Three-phase  380V/50Hz

Total power

 7.54 KW

Air pressure requirement

0.6Mpa

Machine size

L1509mm×W1400mm×H1590mm

Weight

1500KG
